Picote Maxi Miller

SKU: 3560032012 Categories: , Tags: , ,
Brand:Picote

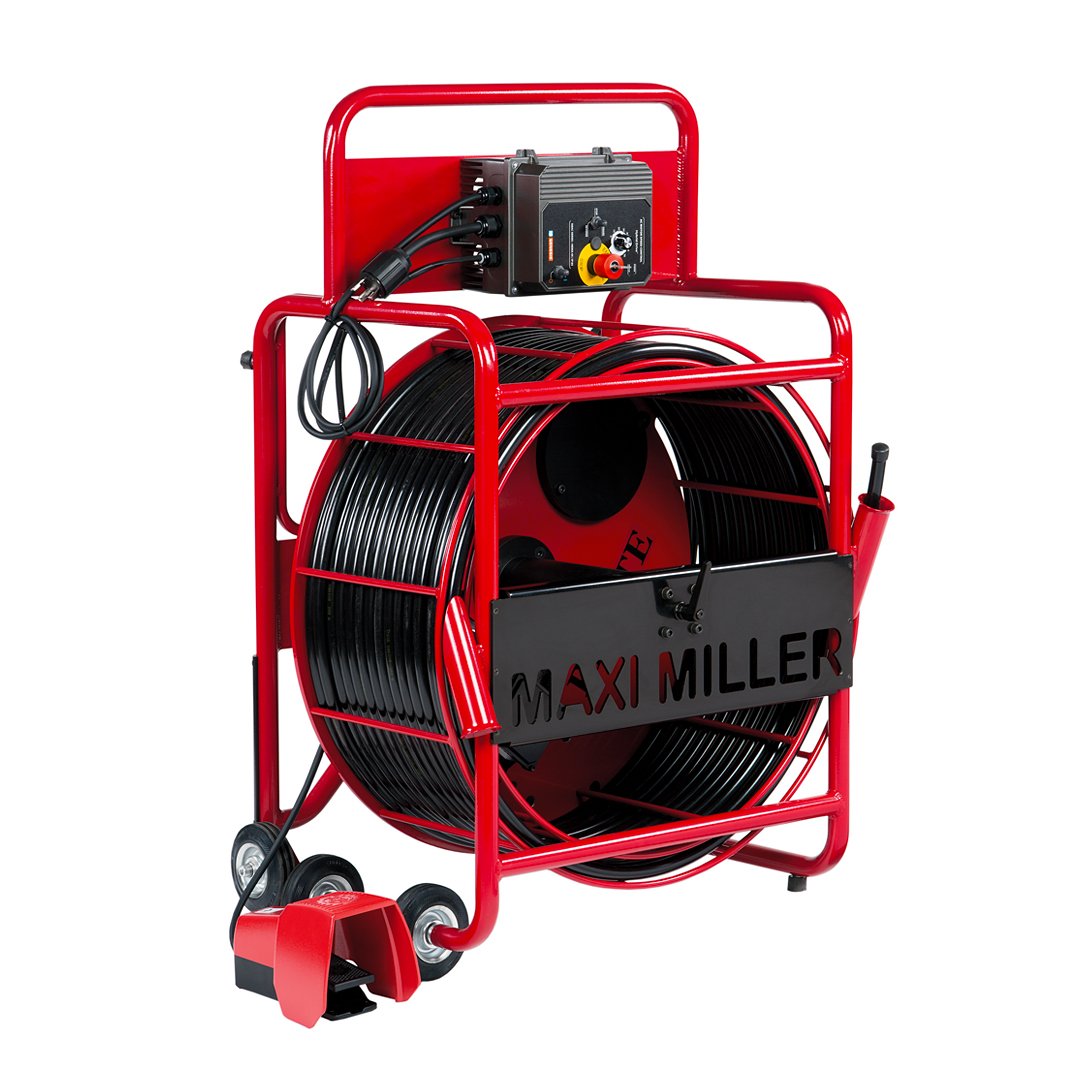

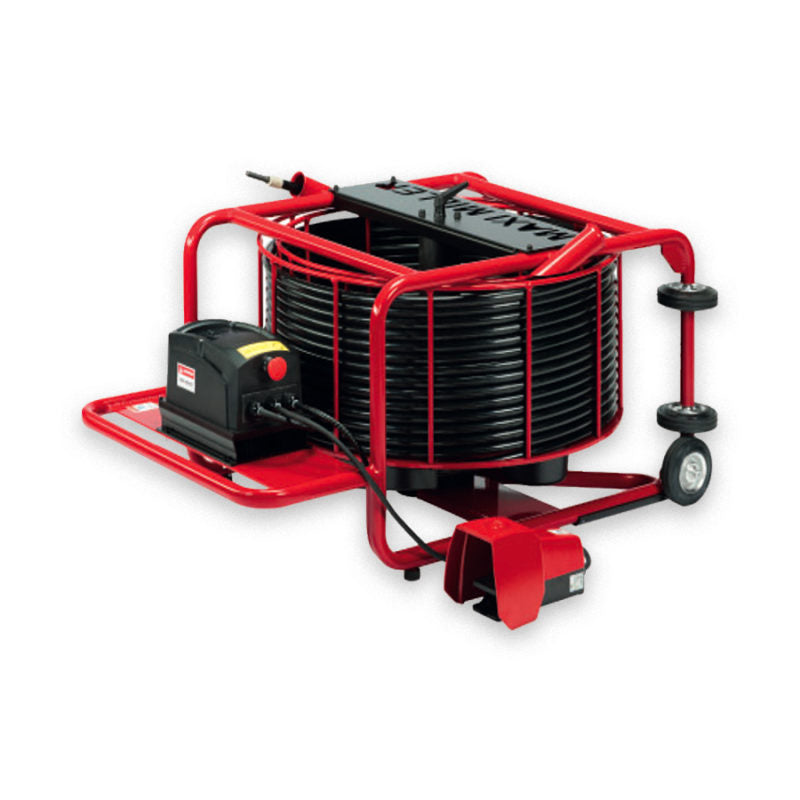

The Picote MAXI Miller

A Proven Machine for Tough Jobs

The Maxi Miller is a high speed, high torque powerhouse designed for cleaning, descaling, and root removal in pipes ranging from DN70-250 and cutting/reinstatements in DN70-200 pipes.

When combined with the Maxi Coating Pump it has the capability of installing Picote Brush Coating™ in DN70-300 pipes.

It has a reach of 30m of 12mm shaft which can be extended 10m using a shaft extension.

  • The Maxi Miller opens the door for new jobs such as blockage and root removal, light and heavy descaling, reinstating lines in CIPP, epoxy coating, liner & concrete removal, and more.
  • Optional Maxi Miller Plus model has a removable control unit on a 5m cord.
  • High Speed/High Torque: 500-1475 rpm.
  • Standard safety features include: protective outer shaft casing, operator presence foot control, manual safety clutch, internal GFI, and an emergency stop to help keep you and your equipment investment protected.
Picote Maxi Miller Technical Specifications
Pipe Size Ranges
Cleaning / DescalingDN70-250
Cutting / ReinstatementDN70-200
Picote Brush Coating™DN70-300
Usable Shaft Length30m
Cable Extensions10m
Shaft Size12mm
Casing TypeThick
Output Power (Watts)1.13kW
Speed500-1475 RPM
Power220/230V, 16 Amp
Weight89kg
Size1150 x 854 x 489mm
Safety FeaturesProtective shaft casing, operator presence foot control, internal GFI, safety clutch & emergency stop
IP Class54
